Project Case Study

DiscordBot TicTacToe

PythonDiscordMinimax AlgorithmState Management

Project Overview

A Discord bot that lets users play Tic-Tac-Toe directly in chat.

README.md

TIC-TAC-TOE DISCORD BOT

This is a simple tic-tac-toe game implemented in discord bot made using discord.py

SETTING UP

  1. Installing
    Use git commands to clone the repository and setup python venv with python@3.11.1

    cd <working-directory>
    git clone https://github.com/Raman-Shakya/DiscordBot-TicTacToe
    cd DiscordBot-TicTacToe

    python -m venv env
    .\env\Scripts\activate.bat
    pip install -r requirements.txt

  2. Setting up Discord Bot\

    1. Goto discord's developers portal
    2. Create a New Application with name of your choice
    3. Goto Bot section
    4. Check on Message Content Intent
    5. Copy Token by clicking on Reset Token
    6. Goto OAuth2 section and to OAuth2 URL Generator and select bot

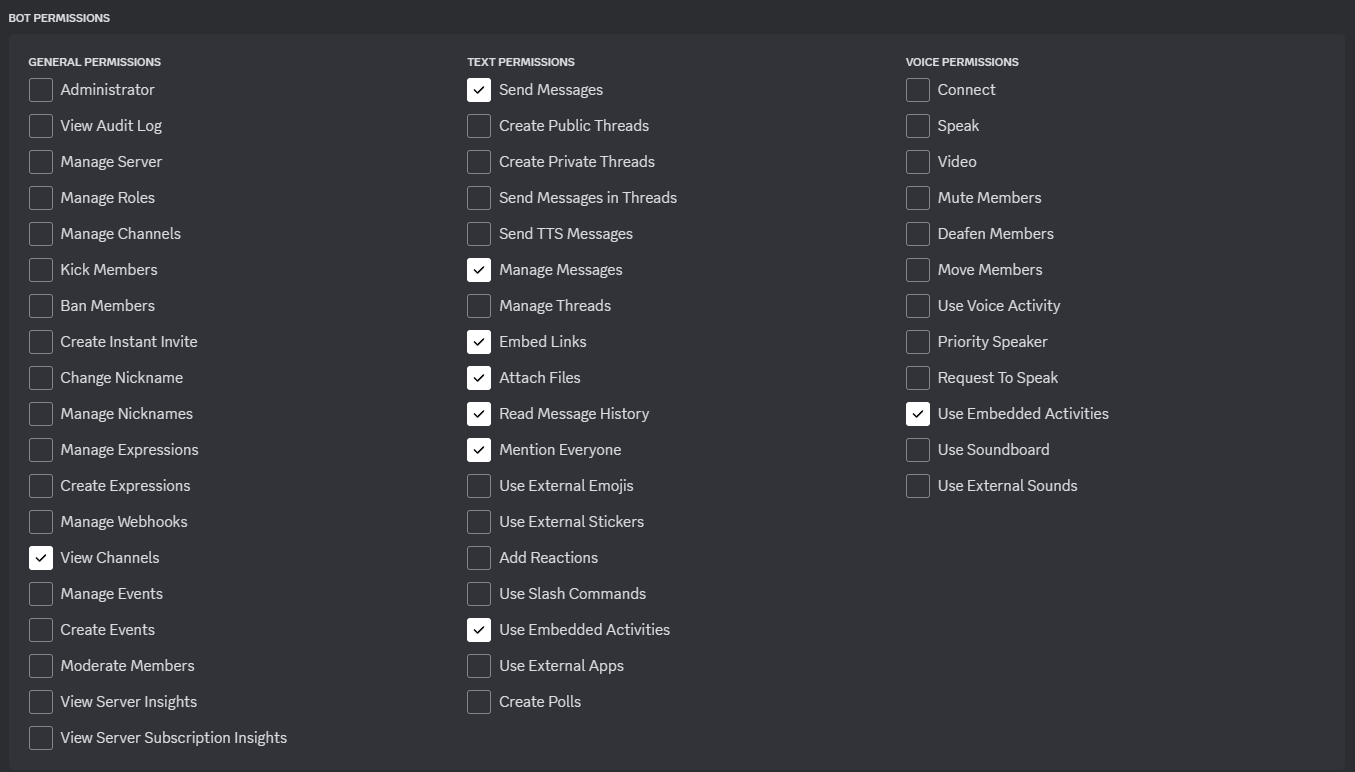

    7. New BOT PERMISSIONS sections should be created, select required permissions
      bot permissions
    8. Select Guild Install and open the GENERATED URL and select the server you want this bot to add to.
  3. Configuring App
    We need to let the program know that they it is controlling the bot we just created, for this we create a .env file in the project scope

    echo > .env


    and edit the .env file to

    TOKEN=<Token-copied from discord developers portal earlier>


    this token is read in main.py and logged in using

    client.run(os.getenv('TOKEN'))

  4. Run the main.py file to start the bot, you should see the bot in the server active after running the code.


Help Command

  • Use help command to list all the commands available in the bot.

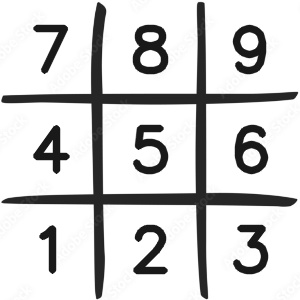

  • The positions are mapped accordingly.

BOT Modes

There are two modes of the bot

  1. Single Player
  2. Multi Player

Single Player

Here, only one person can play the game, it plays with AI which was implemented using minimax algorithm.

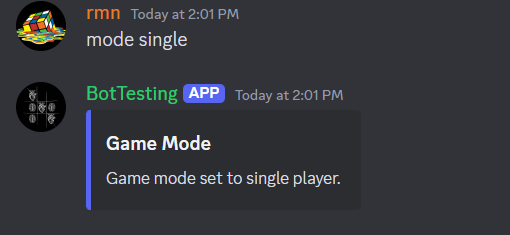

Type mode single to switch to single player mode

you can also set difficulty level from 1 to 9 using difficulty command

Multi Player

Here, two players can play the game, first player is assigned to play for `X` and the second player is assigned to play for `O`. The turns alternate in standard Tic-Tac-Toe Game.

Type `mode multi` to switch to multi player mode.\

Player Setup

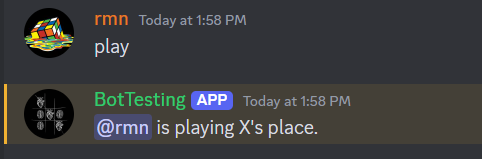

  • To play the game players should type the play command first.

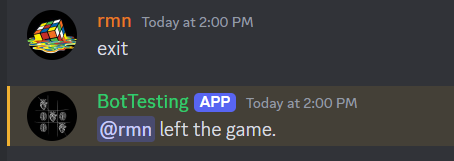

  • Players can exit the game by typing the exit command.
  • If the game hasn't started yet, the modes are automatically selected when players enter the game.

Game Play

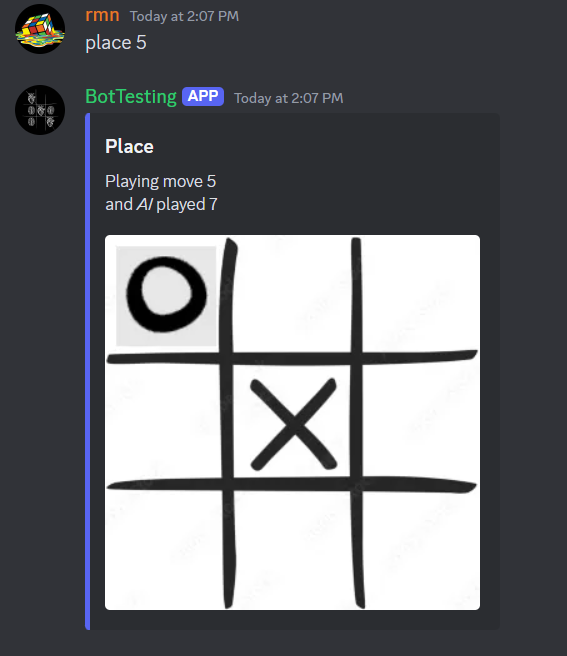

  • Game is played using the place command followed by the position given by

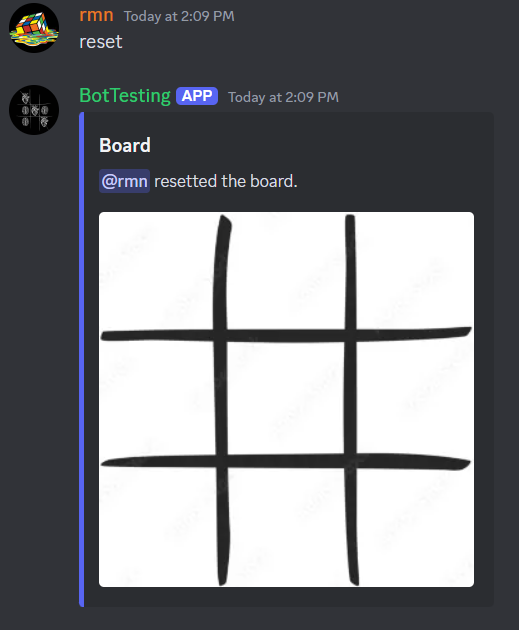

  • Use the reset command to reset the game.

Appearance

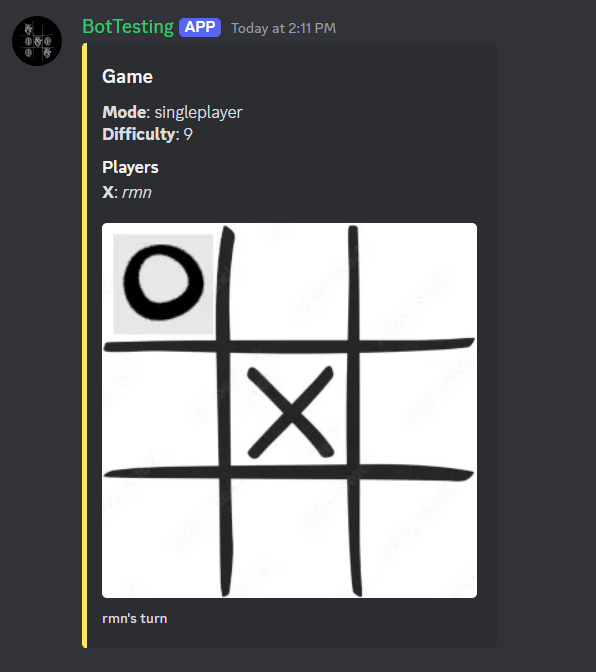

  • Use show command to show the current state of the game.

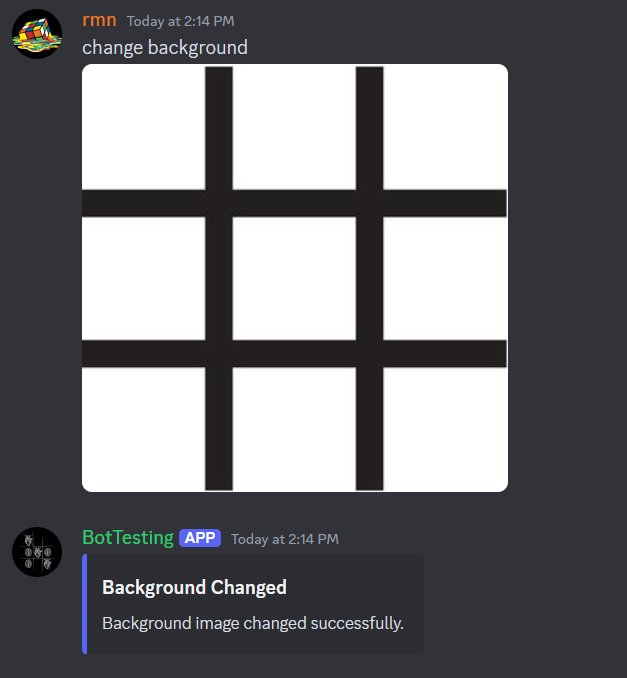

  • Use change background command with attached background image to change the background of the board.

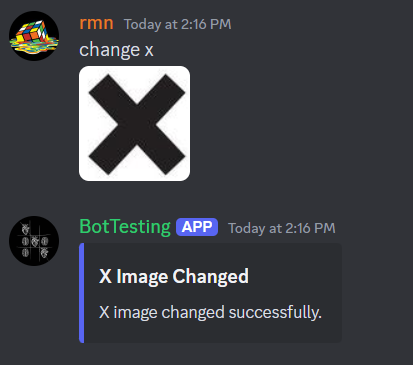

  • Use change X command with attached image for X to change the image for X.

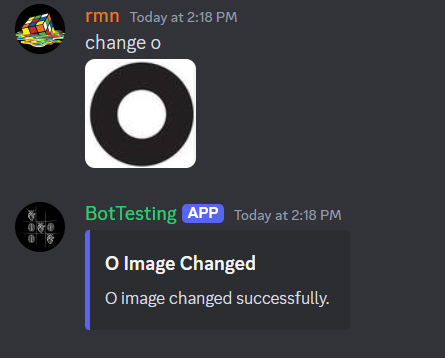

  • Use change O command with attached image for O to change the image for O.

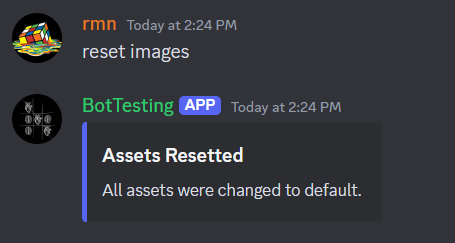

  • Use reset images to change all images to default image.

Contribute

  • You can fork this repository and make changes and finally request a pull request to merge your changes in this repository.
  • If you find any issues with this repository then you may open a issue on issues section
